LIGHT SOURCE
Light Source:800W LED Engine
Total Lumen Output of engine:5,2500 lumens
Color Temperature Output of Fixture:7,000K
Life Expectancy:20,000 hours
ELECTRICAL AND CONNECTORS
Rated Input Voltage: AC 100-240V~ 50/60 Hz
Total Power Consumption: 970W
Power Factor: ≥0.97
Input Current: 4.5A @ 220V

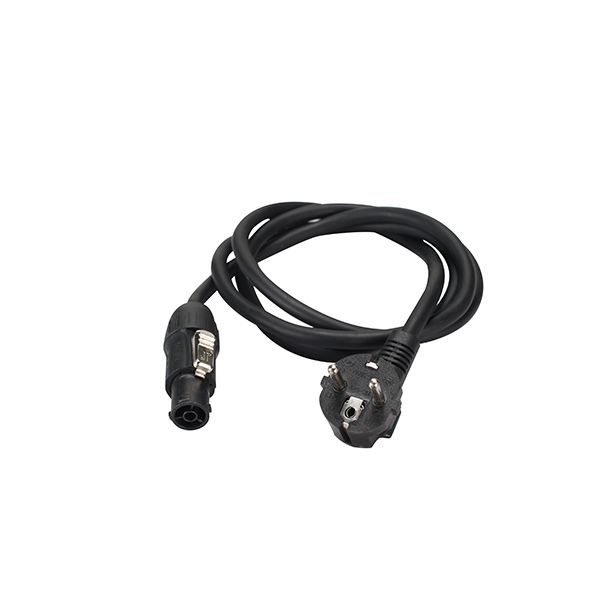

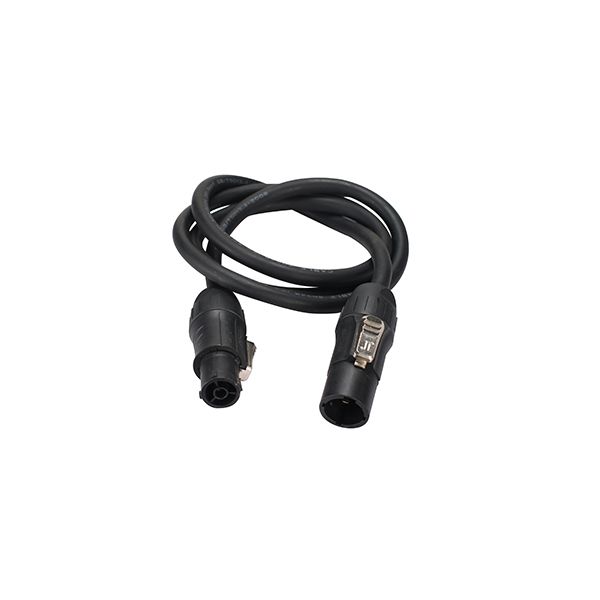

LED Lifespan: ≥20,000 hoursPower In/Out:Waterproof power connector in/out

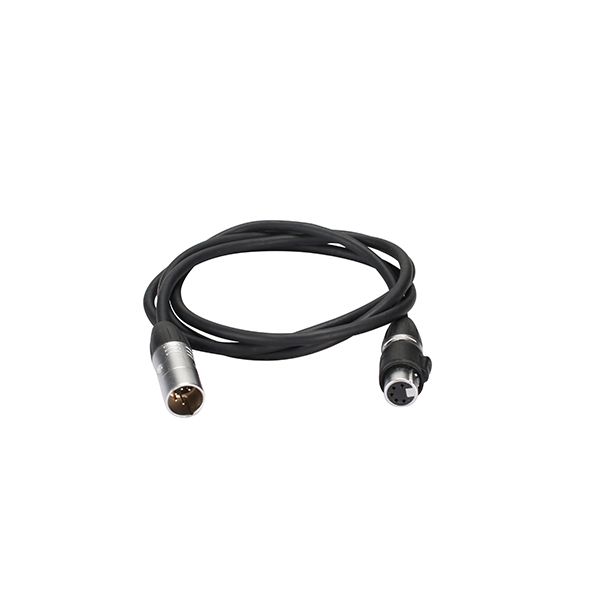

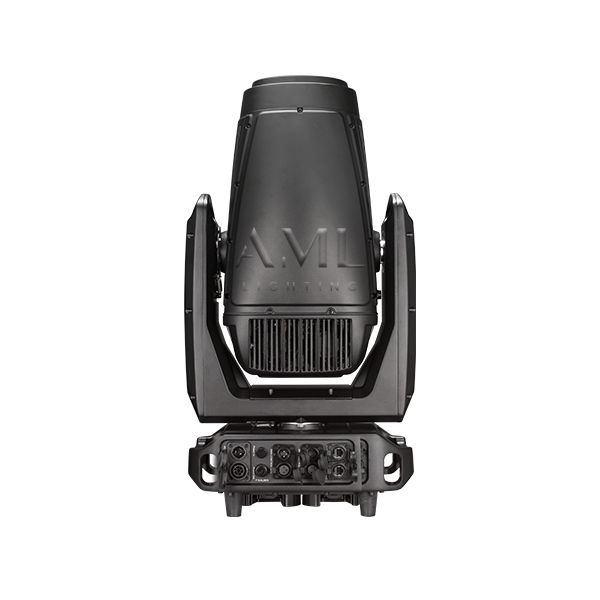

Data In/Out:3-pin or 5-pin waterproof XLR,

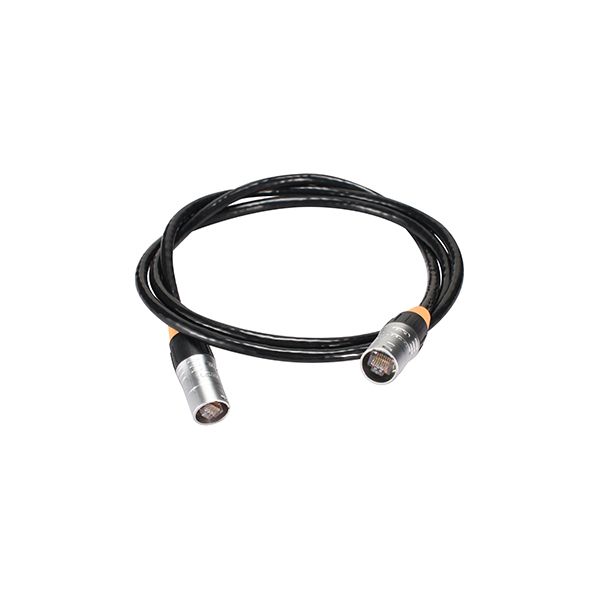

RJ45 connector
OPTICAL SYSTEM
Beam Angle: 5°–45°
Light Source: Single 800W LED
Luminous Flux: 31500Lm
CONTROL

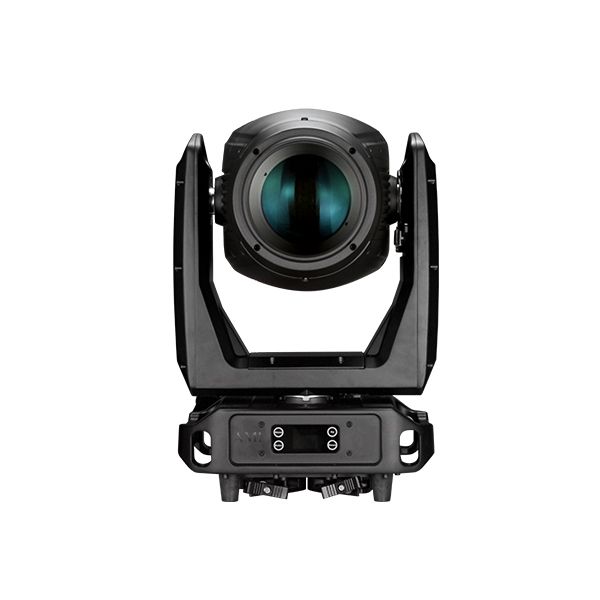

4 touch button control panel
Display:LCD display
Protocols:DMX512,RDM,Art-Net,sACN
Control Channels:42CH/32S CH/32F CH/23CH
PATTERN SYSTEM
Rotating Gobo Wheel: 7 patterns + 1 open, quick-swappable (Ø20mm outer / Ø15mm inner, 1.1mm thickness)
Static Gobo Wheel: 8 patterns + 1 open

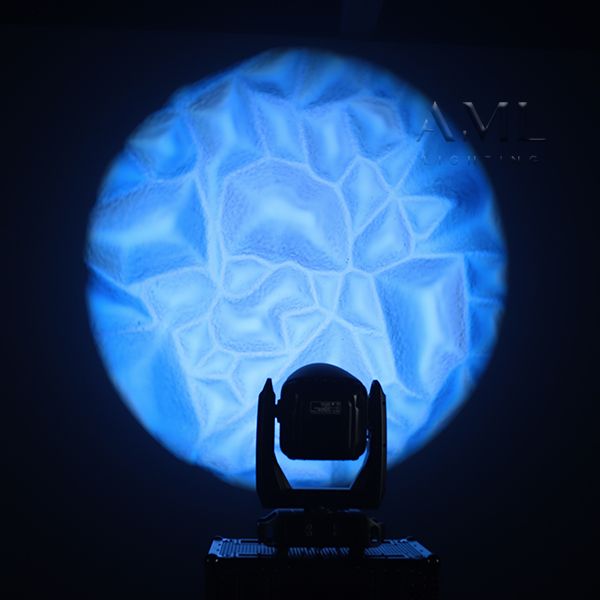

Animation Wheel:1 slot,continuous bidirectional rotation
PRISM
4-facet prism + 4-line prism, combinable with simultaneous rotation
Shutter/Cutting System
4 independent blades for fast and smooth cuts
Individual control of blade direction and angle, full blackout capable per blade
Full module rotation: ±60°
COLORS
Color Temperature: 7000K
CRI: Ra72 (High-Brightness Mode) / Ra95 (High-CRI Mode)
Color Wheel: 5 colors + CRI filter + 1 open
CMY + CTO Mixing: CTO range 2700K–7000K
PAN&TILT
Pan: 540°, Tilt: 260°, 8/16-bit precision
EFFECT
High-Speed E-Strobe: 1–25 Hz
LED Refresh Rate: 400 Hz–24 kHz
Frost: Medium diffusion
Iris Range: 2.2–45°
PHYSICAL INFORMATION
Dimensions:
358×240×672 mm (Quick-lock hook version)
358×240×692 mm (Integrated hook version)
Weight: 30 kg (Quick-lock)
31.5 kg (Integrated hook)

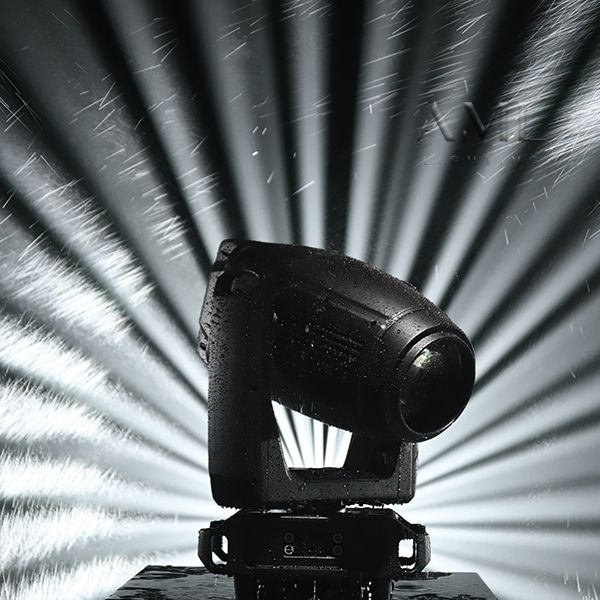

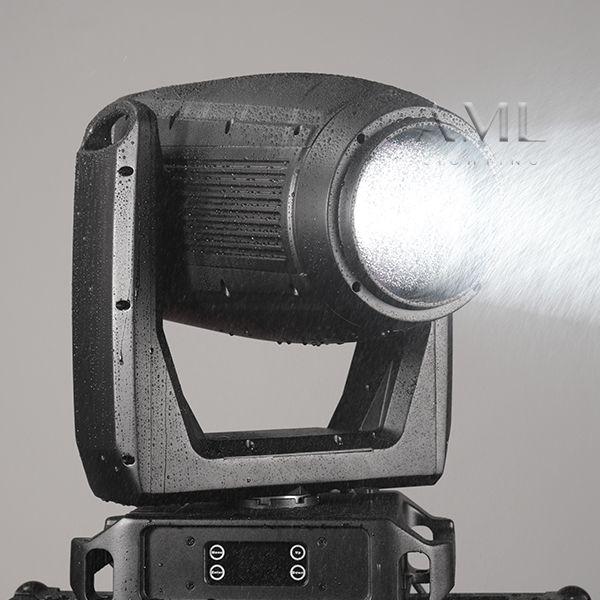

IP Rating: IP65
